McLaren P1 hypercar to boast 903bhp

// Posted in McLaren

McLaren P1

Ooh, it’s so exciting. The McLaren versus Ferrari road car bitch fight is going to be epic to watch.

Earlier today we brought word the forthcoming Ferrari F150 will be bloody expensive, bloody powerful and bloody exclusive. Now, we can fill you in on some details of the McLaren P1. Like the F150 it uses a hybrid system and all told the P1’s oily and electrical bits combine to produce 903bhp (916PS or 673kW).

How do the McLaren boffins do it? Well we’re glad you asked. The magic of two turbos helps to give the 3.8 litre V8 petrol engine 727bhp, while the lightweight electric motor provides a further 176bhp. All told there is 900Nm of torque to play with as well, 260Nm of that is available instantly thanks to the electric motor.

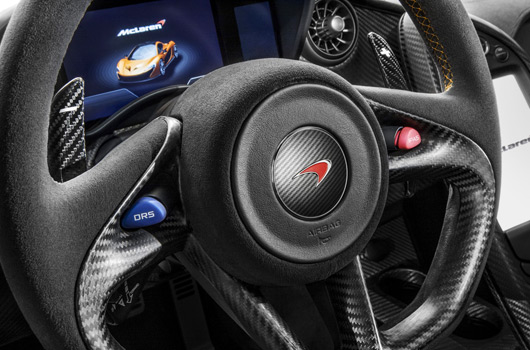

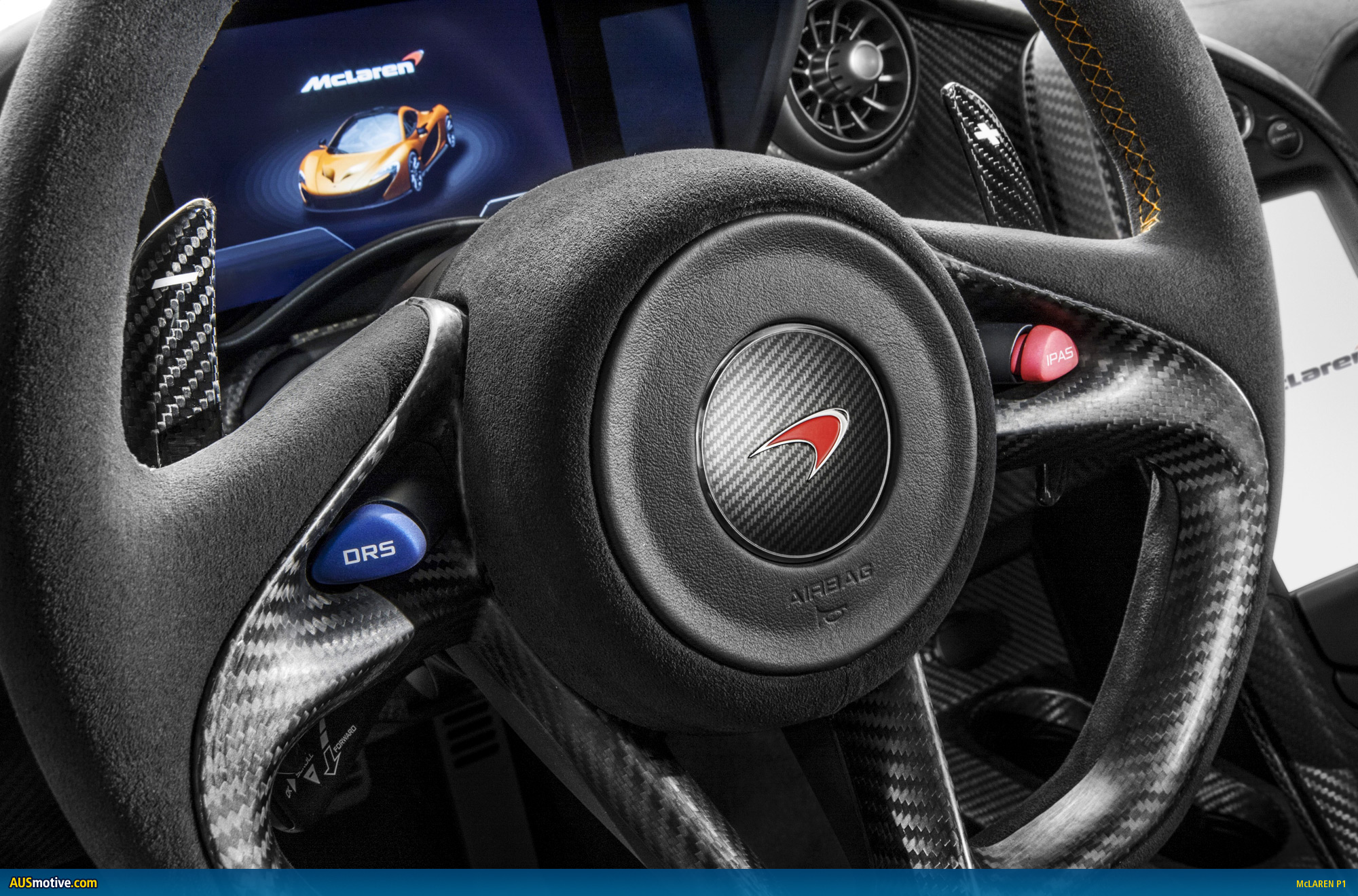

Of course, we’re not allowed to call it just an electric motor—Ron wouldn’t be so plain—rather  we must refer to it as the Instant Power Assist System. It has its own steering wheel button. Also on the wheel is a DRS button which has been inspired by its F1 namesake and reduces drag by 23%.

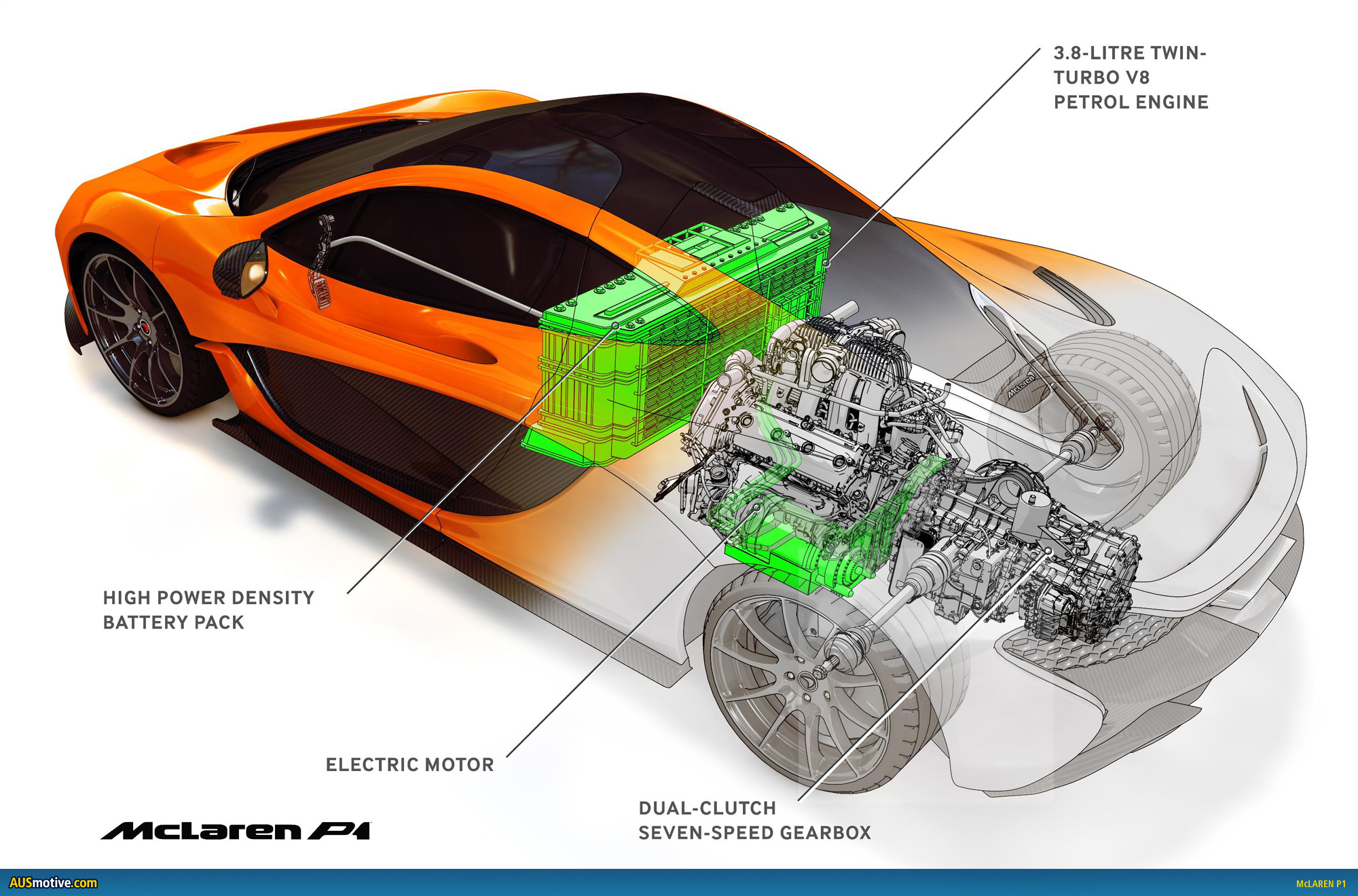

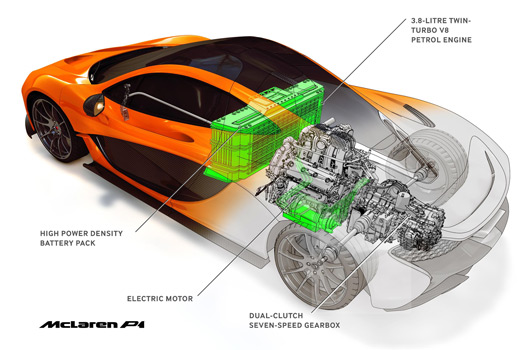

As you can see from the image above the battery pack for IPAS is mounted forward of the engine. It weighs 96kg and is enveloped by the P1’s carbon fibre MonoCage chassis, helping McLaren keep the system’s overall weight to a minimum.

It looks like we’ll be getting at least one more official P1 update from McLaren before the car makes its full debut in Geneva early next month.

McLaren P1

McLaren P1

McLaren P1

McLaren P1

The McLaren P1â„¢ adopts Twin Power to deliver phenomenal torque, instantly

  • IPAS (Instant Power Assist System) and DRS (Drag Reduction System) offer instant boost of power and straight-line speed
  • 916PS (903 bhp) and 900Nm, with emissions of less than 200g/km
  • Substantially revised 3.8-litre twin-turbo V8 petrol engine coupled to low-weight, highly efficient electric motor ensures instant torque for optimised throttle response
  • Full E-mode offers in excess of 10km emission-free driving

The McLaren P1â„¢ will have the combined force of two highly-efficient powerplants, offering the optimum mix of superb throttle response, day-to-day drivability and top speed. A mid-mounted 3.8-litre twin-turbo V8 petrol engine and a highly effective electric motor give a combined output of 916PS (903 bhp) and a maximum torque figure of 900Nm, ensuring instantaneous throttle response through the rev range, more akin to a naturally aspirated engine. Emissions of less than 200g/km on the combined cycle are reduced to zero in full electric drive mode, while the Formula 1-derived DRS and IPAS technologies offer an increase in straight-line speed and an instant boost of power.

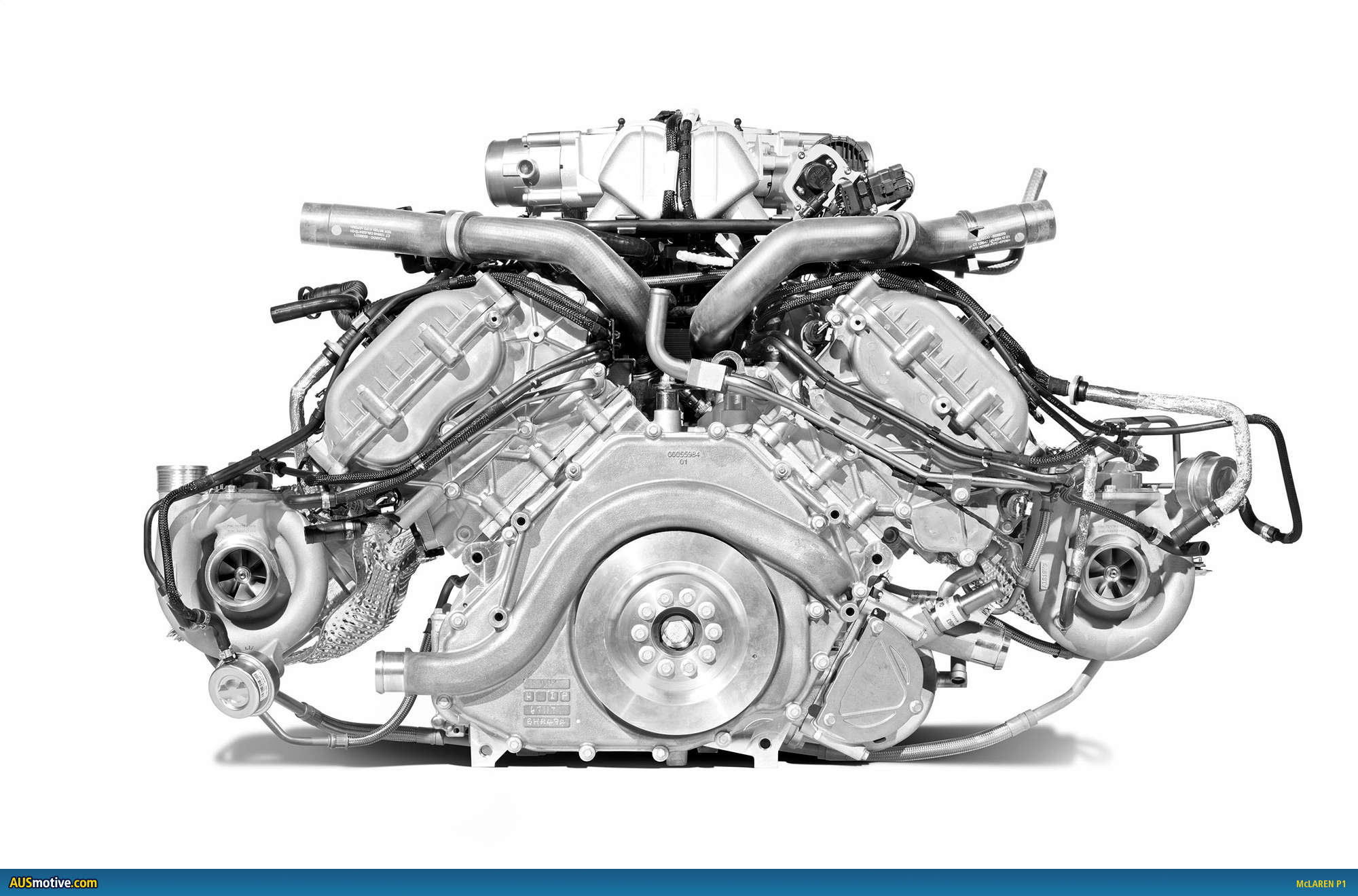

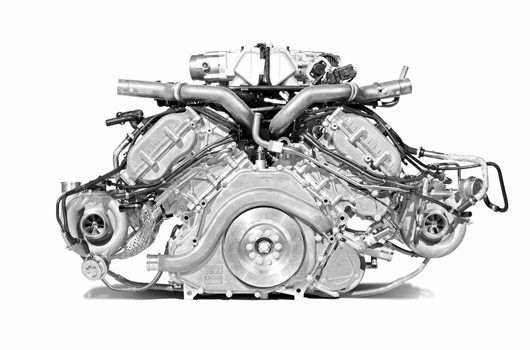

The 3.8-litre twin-turbo V8 petrol engine in the McLaren P1â„¢ is a new version of the familiar M838T unit, that has been significantly upgraded to optimise cooling and durability under the higher loads. The engine block has a unique casting to incorporate the electric motor. The petrol engine produces 737PS (727 bhp) at 7,500rpm, and 720Nm of torque from 4,000rpm. To optimise efficiency of the petrol engine, extensive testing and development work has always been carried out with McLaren Automotive technology partner Mobil 1 on lubrication and hydraulic fluids.

The lightweight electric motor, developed by the McLaren Electronics arm of the Group, produces 179PS (176 bhp), and is unique to the McLaren P1™. The motor produces maximum torque of 260Nm instantly from a standstill, greatly increasing the throttle response of the McLaren P1™, and peak combined torque of 900Nm is delivered from just 4,000 rpm. In addition to this, the McLaren-developed ‘boost’ system, IPAS, provides up to 179PS instantly. The instant response of the electric motor provides a sharper throttle response more associated with a normally aspirated engine, and the significantly enhanced air-charging system enables the McLaren P1™ to have more top-end power – the perfect combination for high performance.

The electric motor is mounted directly onto the engine, and all drive is channelled through the dual-clutch seven-speed gearbox to drive the rear wheels. Thus, the electric motor and 3.8-litre twin-turbo V8 petrol engine work seamlessly together, providing more than just added ultimate power and torque.

A further benefit is that the e-motor can provide faster upshifts. This is achieved through the application of instant negative torque at the point of shift, making the engine revs drop as quickly and efficiently as possible to the required engine speed for the upshift.

In addition to the obsessive weight-saving measures demonstrated throughout the McLaren P1â„¢, so too is the optimisation of usable energy. When off-throttle the electric motor provides additional drag torque, recovering energy to the battery that would otherwise be lost to the brakes.

E-mode

The McLaren P1â„¢can be driven in a variety of modes, powered by the engine and electric motor together, or solely by the electric motor. This ensures versatility and ease of transportation, allows use in low emission zones and residential driving is optimised with near-silent running.

Maximum power comes when using both powerplants together, but even in E-mode the performance is strong. E-mode is the most economical mode available with zero tailpipe emissions. In E-mode, the McLaren P1™ can travel more than 10km with electric-only power – enough for most city journeys. When the battery is empty, the petrol engine will automatically start to maintain drive and charge the battery.

IPAS and DRS optimise performance and throttle response

The power available via the petrol engine and electric motor is further enhanced on the McLaren P1â„¢ through two steering wheel-mounted buttons which activate the DRS (Drag Reduction System) and IPAS (Instant Power Assist System).

The Drag Reduction System used on the McLaren P1â„¢ is a technology similar to that employed on Formula 1 cars. Speed is increased by reducing the amount of drag on the rear wing and, where the MP4-28 has a moveable flap on the rear wing, the McLaren P1â„¢ has a wing that reduces in angle to lower drag by 23%. The system immediately deactivates when the button is released, or if the driver touches the brake pedal.

IPAS is designed to deliver power rapidly for high performance acceleration, and provides 179PS of instant additional power. In developing the IPAS technology for the McLaren P1â„¢, power delivery was prioritised over energy storage. This is achieved through a groundbreaking, lightweight battery pack, which offers greater power density than any other automotive battery pack on sale today.

Battery

The high power density has been achieved through a combination of high power cells, low pack weight and an innovative cooling system. The battery weighs just 96kg, and is mounted onto the underbody of the high-strength Formula 1-grade carbon fibre MonoCage chassis, which seals the unit in the vehicle, thus avoiding the added weight of any unnecessary battery packaging.

Due to the amount of power being supplied by the battery, complex cooling is required to guarantee cell performance and reliability. The coolant flow is balanced so each cell is cooled to the same temperature across the entire pack.

In addition to the battery being charged via the engine, the McLaren P1™ is also equipped with a plug-in charger which can recharge the battery, from empty, in only two hours. The plug-in charger can be stored in the luggage compartment, although the customer may choose to store it off-board – in a garage or the pits – to save weight.

Further details of the McLaren P1â„¢ will be released in the coming weeks, before the production-ready car makes its world debut at the Geneva Motor Show next month.
