How’d you like a 309kW Yaris Hybrid?

Toyota Yaris Hybrid R concept

Finally, a Toyota Yaris worth lusting after. This, the 309kW (414hp) Yaris Hybrid-R concept, is just what space conscious city commuters have been asking for. Quite why it’s taken Toyota so long to come to the party we’re not sure!

Toyota starts with a 1.6 litre turbocharged petrol engine from TMG to drive the front whels, then whacks on a couple of 45kW electric motors at each rear wheel and there you have it, all that power and all-wheel drive to boot.

While they were stealing ideas from motorsport they’ve photocopied the plans for the supercapacitor on their TS030 LMP1 racer and rejigged it to suit the Yaris. Energy is harvested when braking and when the supercapacitor’s fully charged and you have it set to the saucy sounding race mode you can please yourself with an extra 88kW for up to five seconds. Enough to pass that pesky Porsche we suspect.

But there’s still more! To ensure the motors at the rear wheels can go about their business more efficiently there’s a third 45kW electric motor mounted  between the engine and the 6-speed sequential ‘box. It acts as a generator and helps feed power into the supercapacitor when braking, and if front wheel traction is lost when accelerating then this motor will help boost the power sent to the rear wheels, acting as kind of traction control system.

The rear engines can also help to feed the power to each wheel individually acting as a torque vectoring system. Which pretty much means you can go around corners faster. And who doesn’t want to do that!

We look forward to seeing more of this Yaris Hybrid-R concept when the Frankfurt Motor Show rolls around.

Toyota Yaris Hybrid R concept

Toyota Yaris Hybrid R concept

Toyota Yaris Hybrid R concept

Toyota Yaris Hybrid-R: The technical story

More details on the new Toyota concept that will make its debut at the Frankfurt motor show

In designing Yaris Hybrid-R, Toyota has created a supermini concept like no other. Based on a reworked three-door production model, Yaris Hybrid-R harnesses Toyota’s race-winning sports hybrid technology in a powertrain that develops more than 400bhp.

The concept will appear for the first time at the Frankfurt motor show next month, but ahead of the unveiling, Toyota has released more details about its special engineering qualities.

In simple terms, the powertrain features a 1.6-litre petrol Global Race Engine and two powerful electric motors that give the car intelligent electric all-wheel drive. It also makes use of a supercapacitor to harvest and store energy, just like Toyota’s TS030 Hybrid Le Mans car.

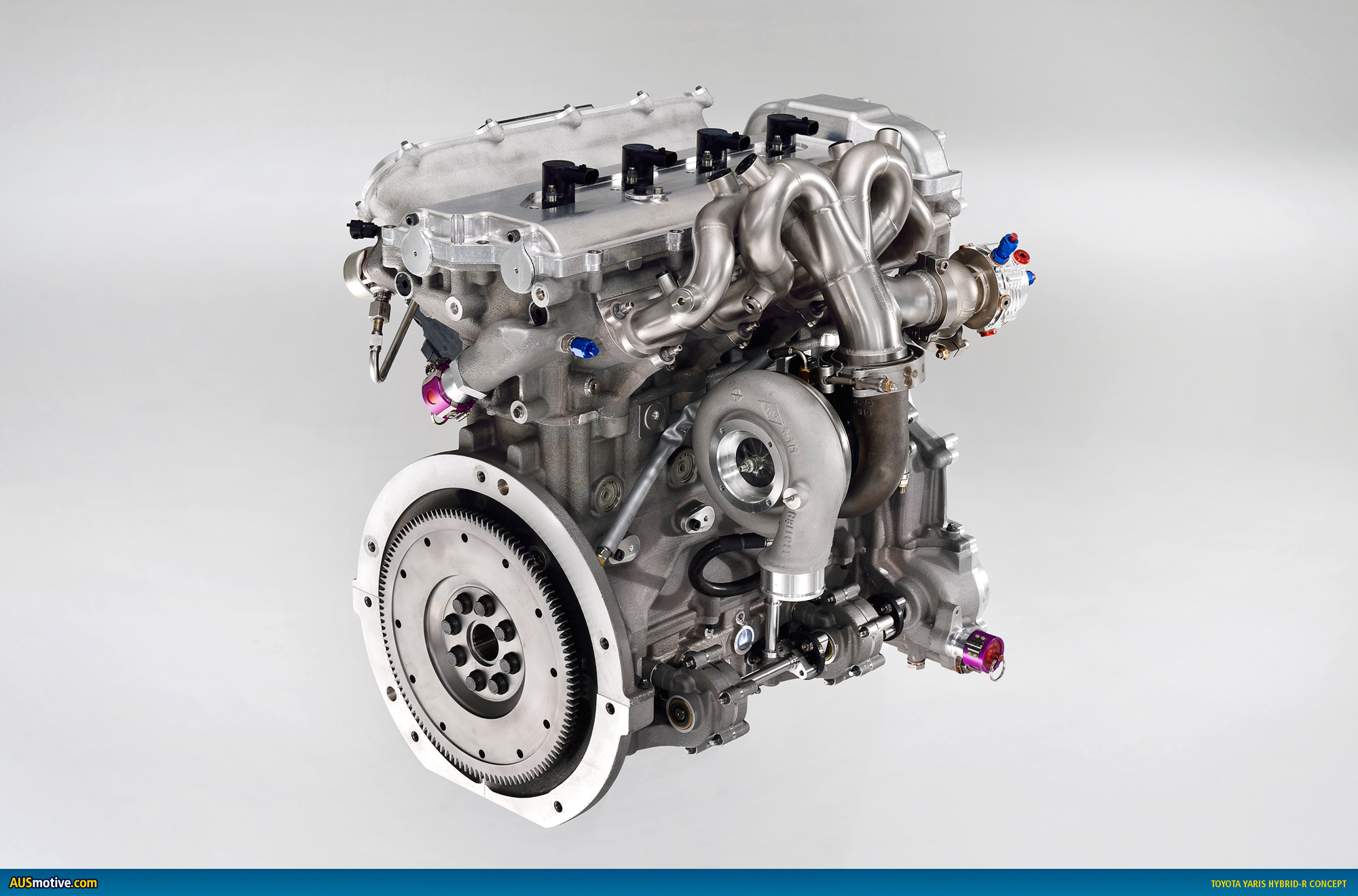

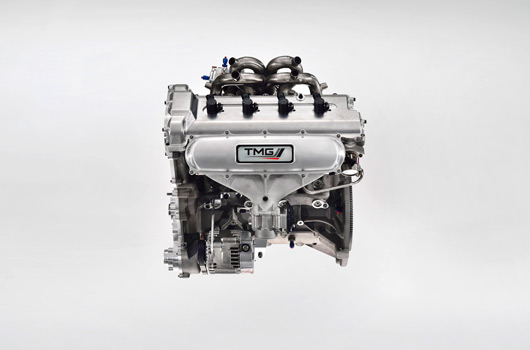

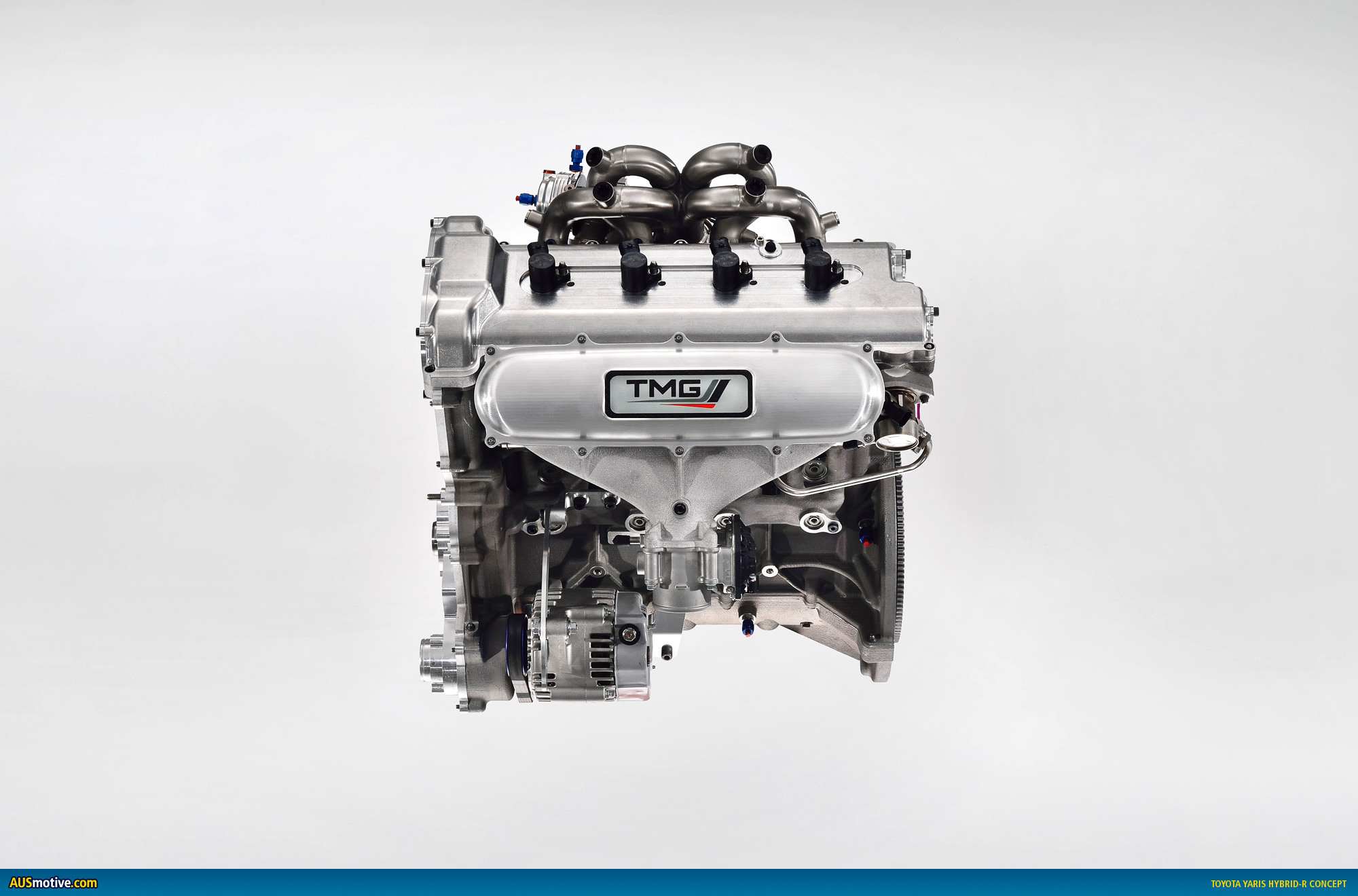

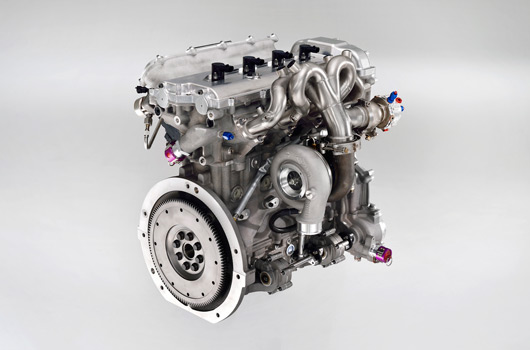

The engine is a turbocharged four-cylinder unit with direct injection, developed by Toyota Motorsport (TMG) according to international sporting regulations. This means it can potentially be used in a number of different racing categories. While the engine drives the front wheels, each rear wheel is powered by a 60bhp electric motor – the same as that used in the standard Yaris Hybrid.

In combination, the elements in the hybrid powertrain produce maximum power of up to 414bhp (309kW). The two electric motors work as electric generators when the car is braking, and supplement the petrol engine’s performance under acceleration.

Supercapacitor

Just as in the Toyota Racing TS030 Hybrid race car, energy recovered under braking is stored in a supercapacitor. Compared to the standard nickel metal-hydride battery used in Yaris Hybrid, the supercapacitor has a higher power density and a fast power charge/discharge speed. This makes it perfectly suited to the demands of track driving in delivering brief, immediate bursts of power.

The level of power depends on the duration of energy delivery required. So, when Yaris Hybrid-R is running in “road” mode, the supercapacitor releases energy for a maximum 10 seconds per charge, and the total power of the two electric motors is reduced to 40bhp. In “track” mode, the motors reach a combined maximum of 119bhp for up to five seconds per charge, reflecting the more frequent braking and acceleration in circuit driving.

Advanced traction control

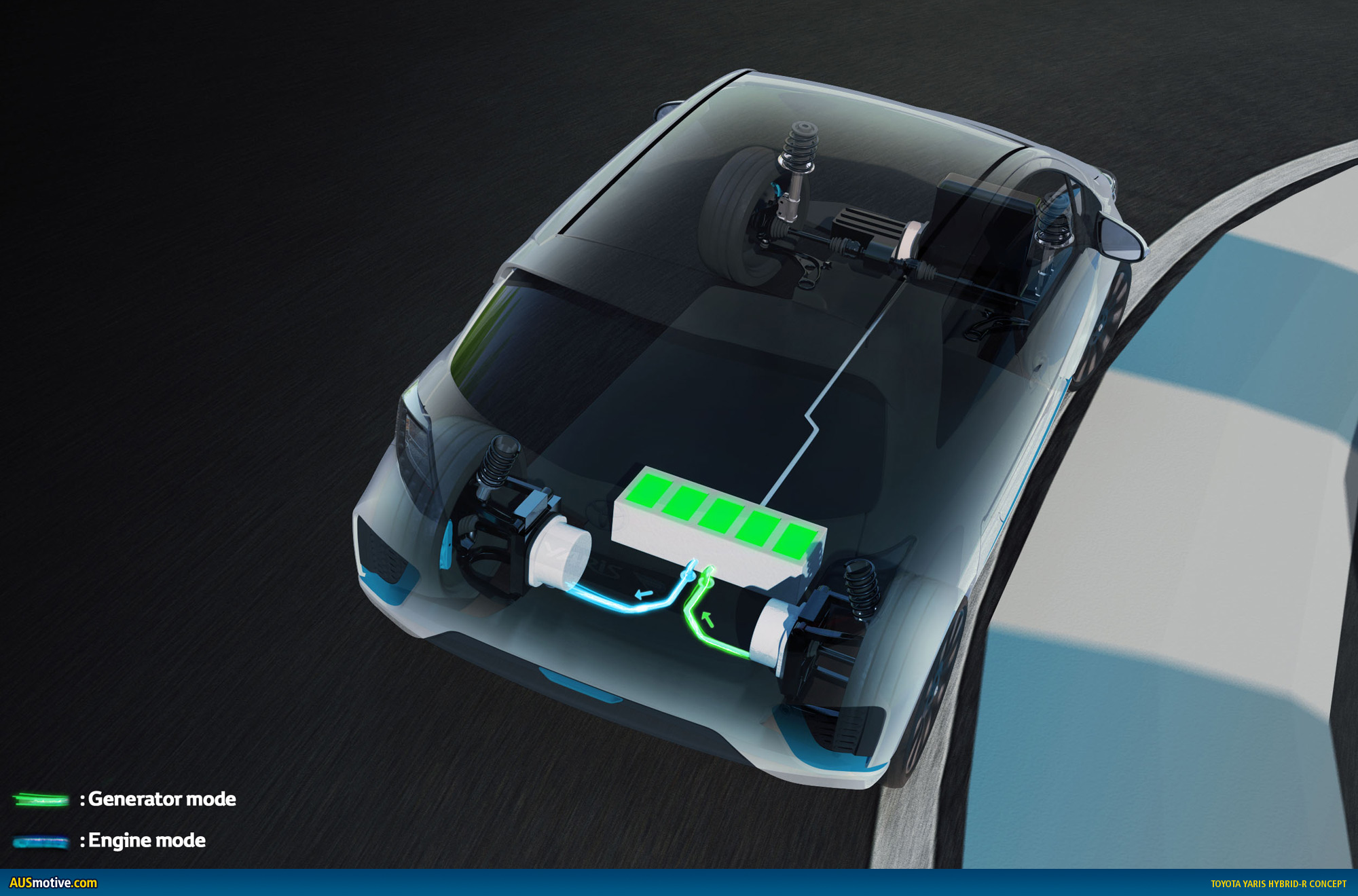

A third 60bhp motor is located between the engine and six-speed sequential transmissions. This operates as a generator, both during deceleration to feed power to the supercapacitor, and during acceleration to power the rear electric motors.

The latter only happens when engine power and torque exceed the front wheels’ grip limit. The generator works like an advanced traction control system, redirecting torque as electric energy to the rear wheels, to boost acceleration and improve handling rather than simply to limit engine power.

Torque vectoring

The rear electric motors can have a big influence on Yaris Hybrid-R’s handling when cornering, by altering the torque distribution between the left and right rear wheels.

Each motor can be used independently as a generator or a motor to achieve the same effect as an intelligent torque vectoring differential.

Depending on the radius of the curve, the system can send more torque to the outside rear wheel, allowing higher entry speed into middle-speed bends; apply more braking force to the inside wheel in fast curves; or even brake and accelerate each wheel independently in slow bends to adjust the yaw effect for a better line, and to limit steering angle and understeer.
