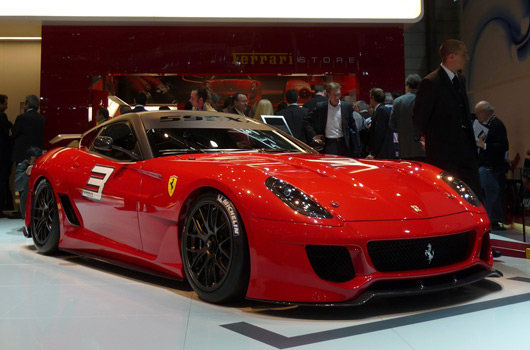

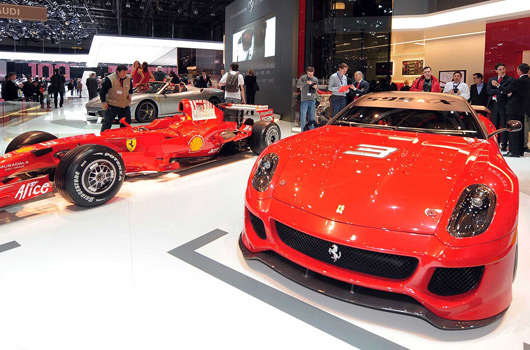

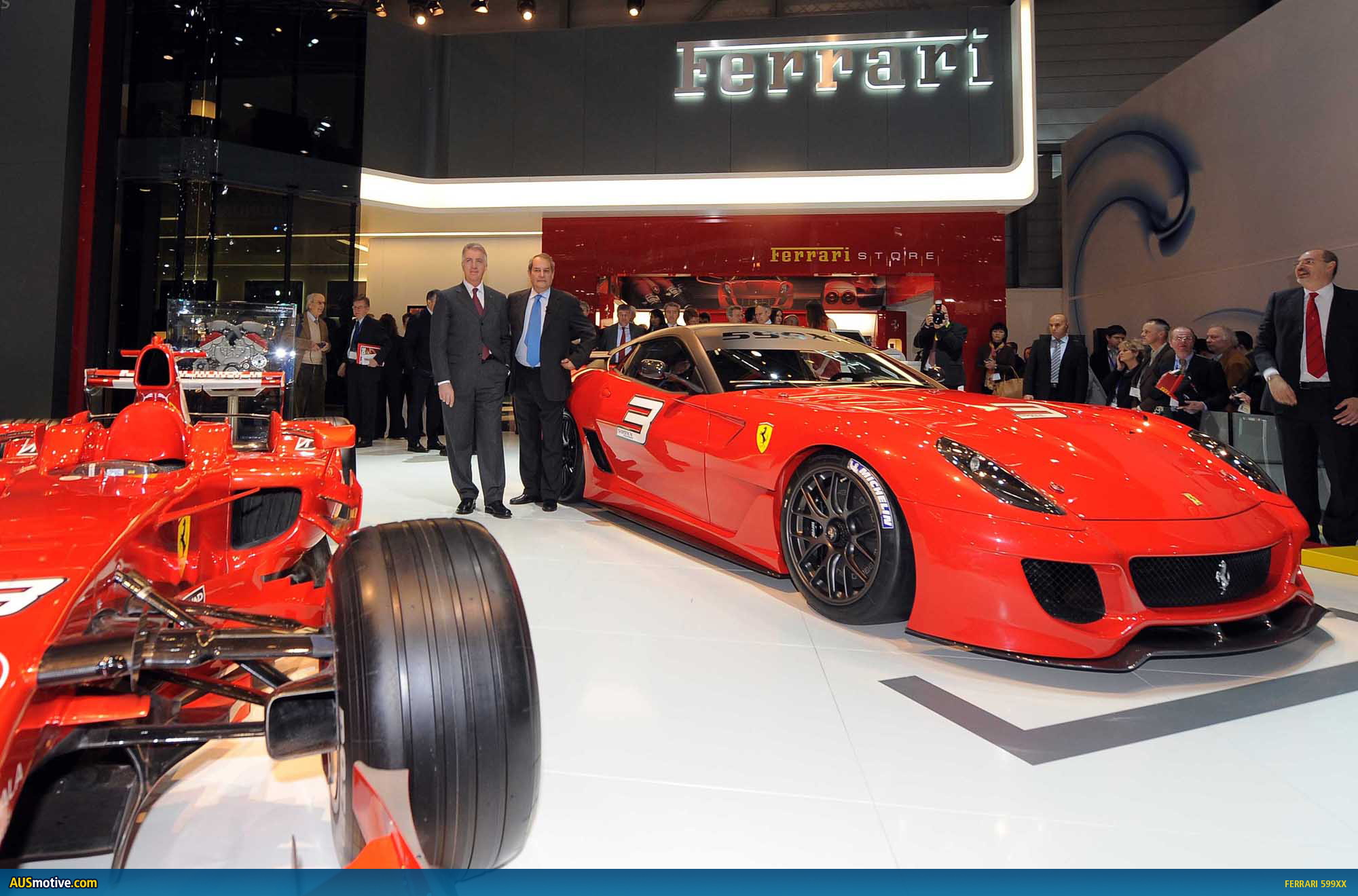

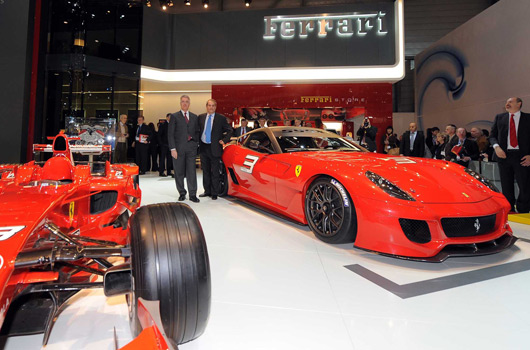

The Ferrari 599XX made its public debut at the 2009 Geneva Motor Show. For some reason, back then, it missed the AUSmotive rounds. Although the car was featured here a few weeks ago thanks to Steve Sutcliffe and Autocar. Sutcliffe was the first non-Ferrari person to drive the car and he described the experience as “absolutely chuffing mervellous”.

Now, of course, the 599XX is back in the media spotlight thanks to its sub-7 minute lap time at the Nürburgring Nordschleife. Ferrari are claiming that as some sort of record, with various caveats attached. But how do you categorise a car of which less than 30 will be made, can only be driven on the track, and will never be raced? Anyway, more on that later.

For now, just feast your eyes on the pics after the jump and think what you would do with a specially engineered 6.0 litre V12 producing 540kW if it came up to you in that chassis and asked “how you doin'”.

Ferrari 599XX

Ferrari 599XX

Ferrari 599XX

Ferrari 599XX

Ferrari 599XX

Ferrari 599XX

Ferrari 599XX

Ferrari 599XX

Ferrari 599XX

Ferrari 599XX

Ferrari 599XX

While based on the 599 GTB Fiorano with the same transaxle layout and engine type, this prototype is an extreme track car. Ferrari’s engineers have carried out extensive work on the engine’s combustion chambers and inlet and exhaust tracts. These modifications, combined with the fact that internal attrition has been reduced and the maximum revs have been boosted to 9,000 rpm, helped achieve the target power output of 700 hp at 9,000 rpm. Particular attention was also paid to cutting the weight of the engine unit components. This was achieved both by optimising forms – as in the new crankshaft – and adopting exclusive materials, as in the carbon-fibre used for the intake plenums. A new gearbox shift strategy cuts overall gearchange times to 60 ms.

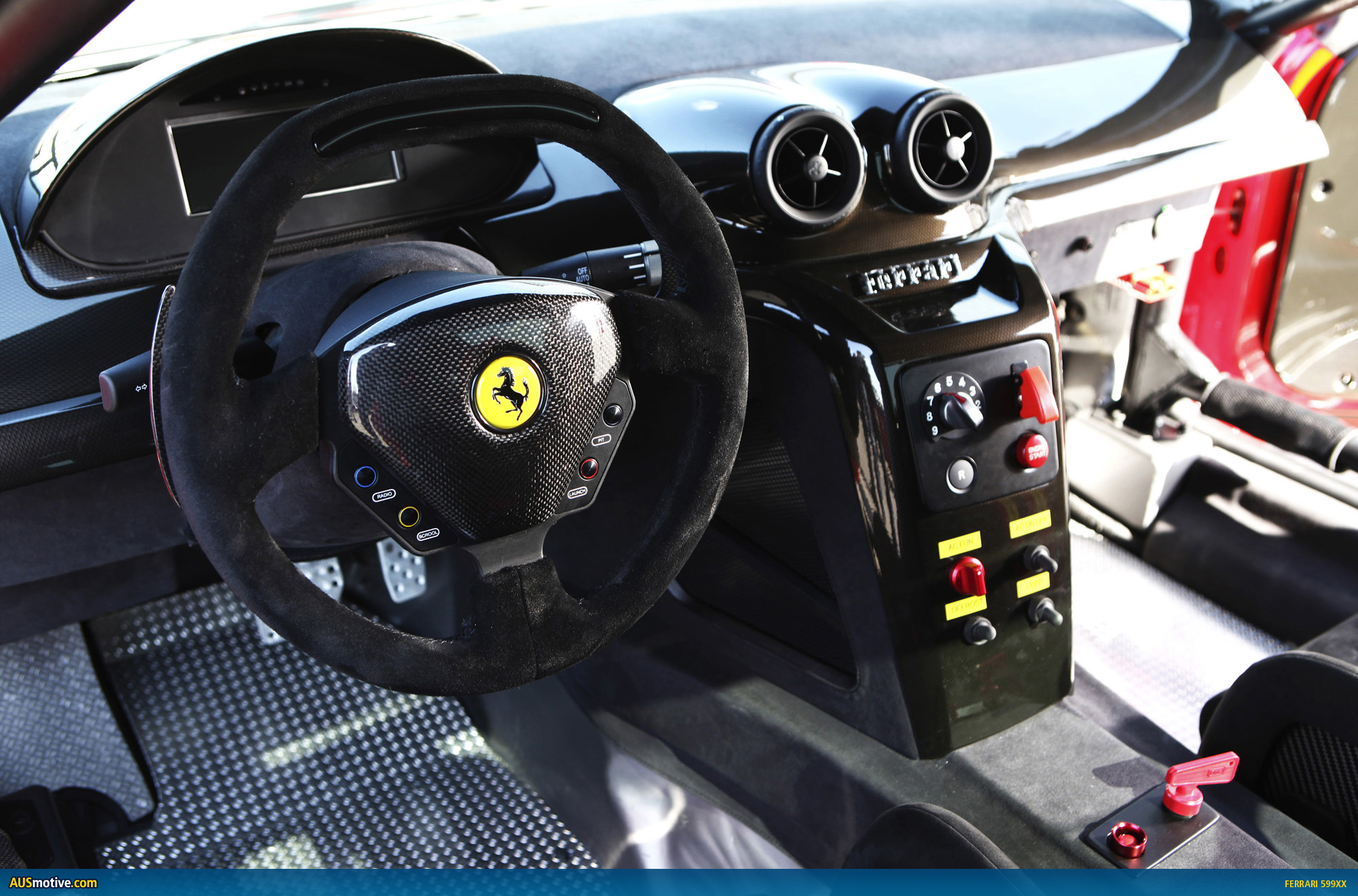

The 599XX is characterised by an innovative electronic concept called the “High Performance Dynamic Concept” which has been designed to get the maximum performance from the car by managing the combination of the car’s mechanical limits with the potential of its electronic controls. The mechanical and electronic systems work together to get the maximum performance from the car under extreme high performance driving, for consistent lap times. The sporty handling has been improved thanks to the adoption of second generation SCM suspension system. Track usage is also made easier thanks to the new “virtual car engineer”, a screen in the car that provides a real-time indication of the vehicle’s efficiency.

The 599XX’s aerodynamics were honed in numerous wind tunnel test sessions with the result that the car now boasts 280 kg of downforce at 200 km/h (630 kg at 300 km/h). The front underside of the body is completely faired-in and the vents that channel hot air from the engine bay have been moved to the bonnet.

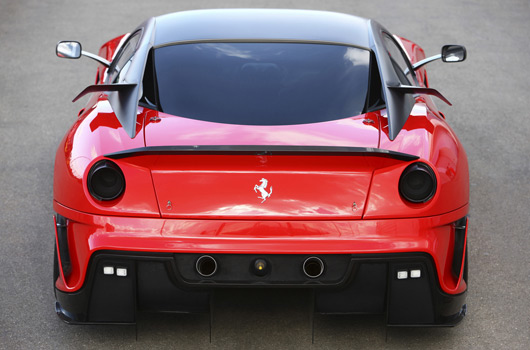

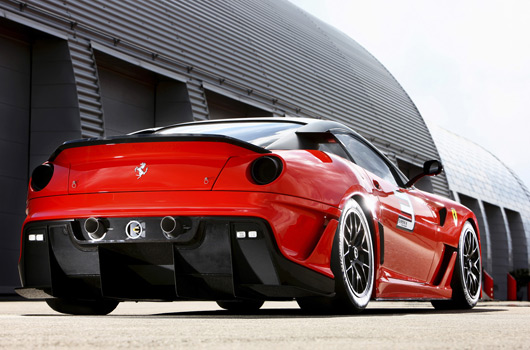

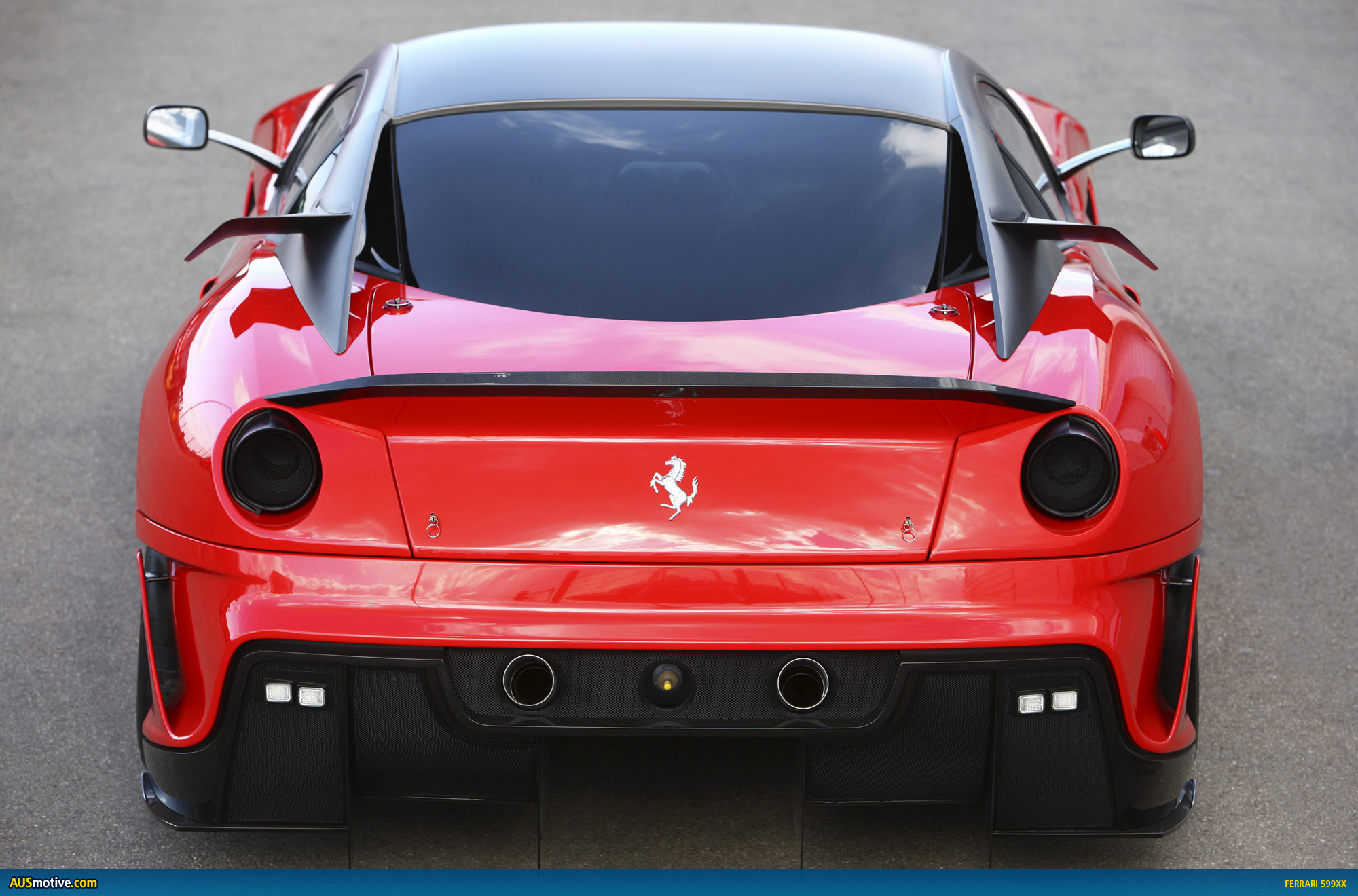

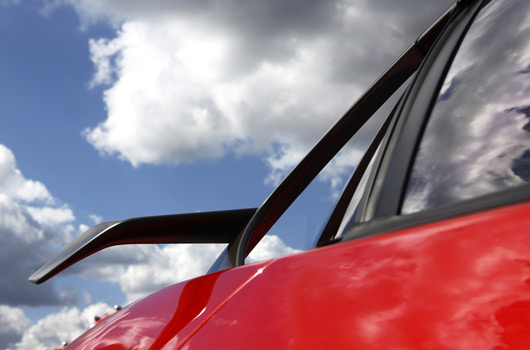

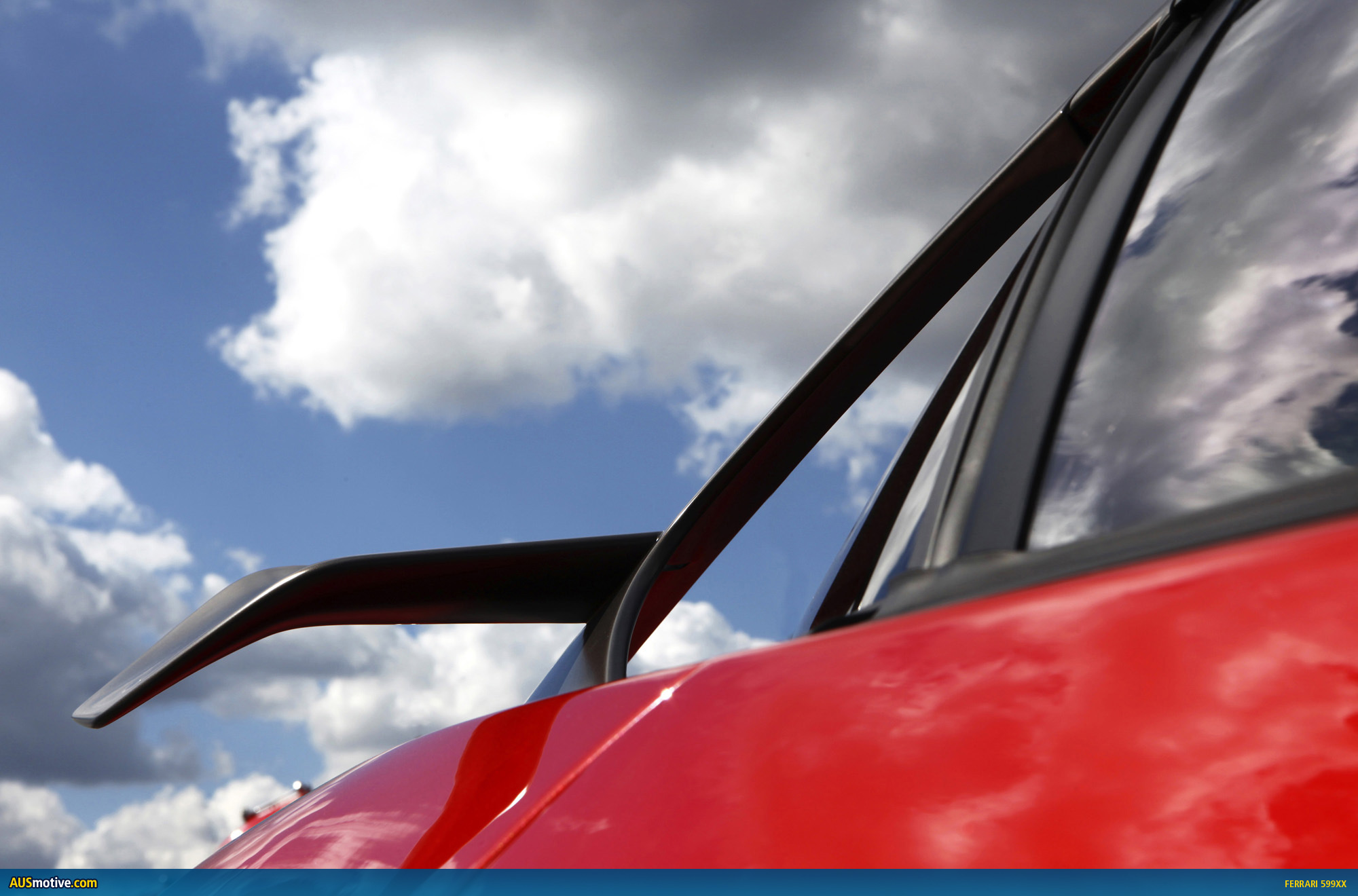

The “ActiflowT” system increases downforce and/or cuts drag depending on the car’s trim cornering conditions, courtesy of the use of a porous material in the diffuser and two fans in the boot which channel the air flow from under the car out through two grilles next to the tail-lights. Winglets have been added to the rear buttresses to increase downforce. while synthetic jets have also been incorporated into the rear of the car to control and smooth the air flow and to reduce drag.

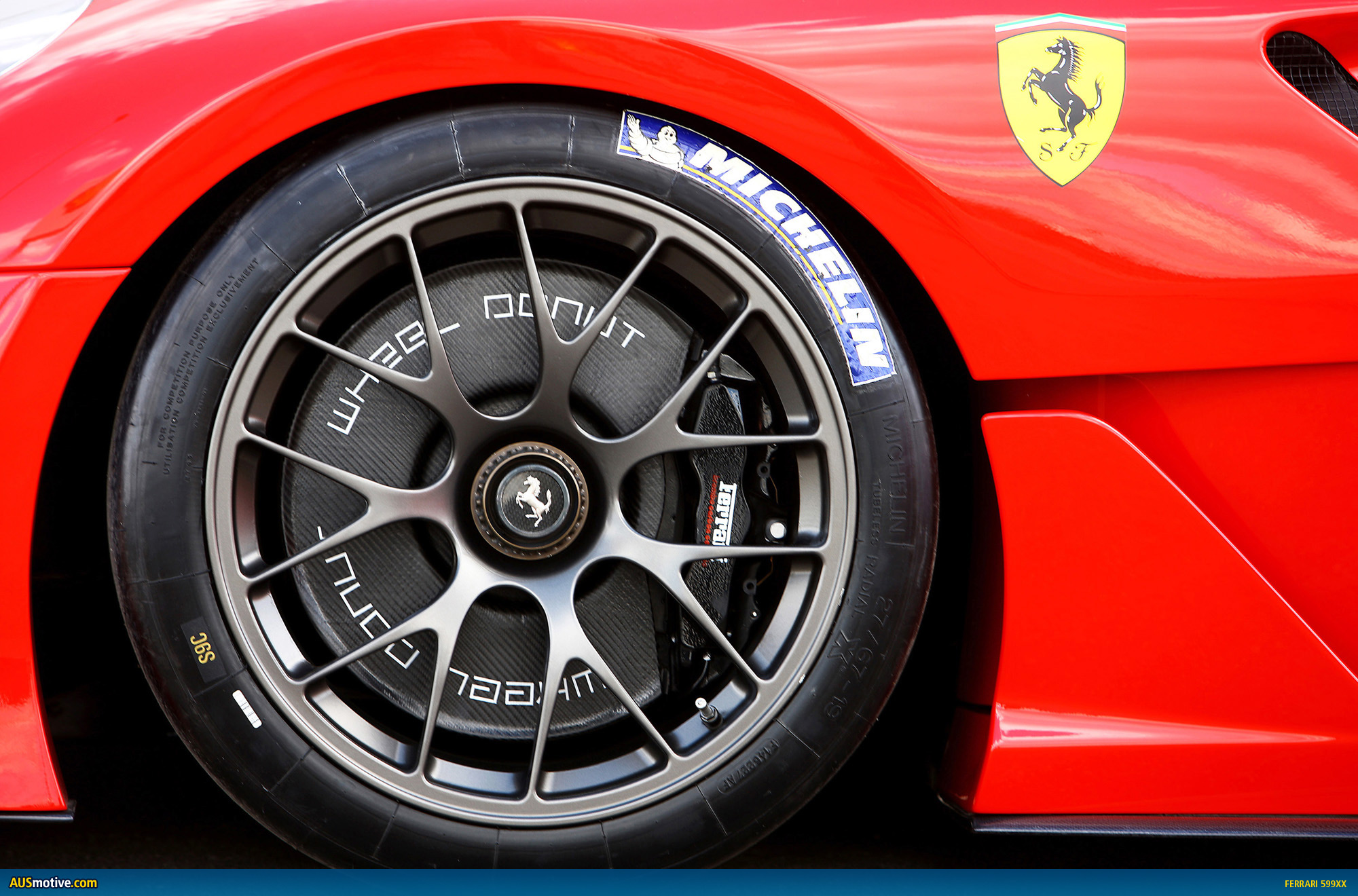

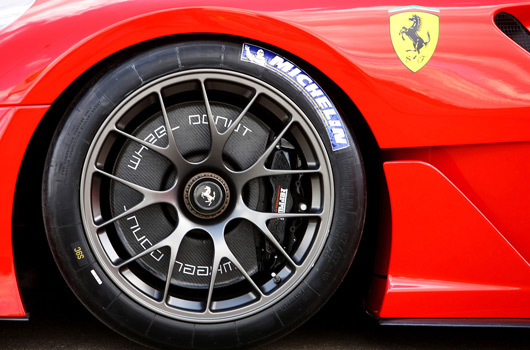

Ferrari’s engineers have also used F1-derived “doughnuts” which partly cover the brake discs and wheel rim. These have the dual function of improving both aerodynamics and brake cooling.

In terms of the bodywork, composites and carbon-fibre have been widely used and the engineers drew on their experience in working with aluminium to reach the weight target. The development of increasingly high-performance materials has also benefited the carbon-ceramic material braking system. The brake pads are now made from carbon-fibre which means that the calipers are smaller whilst guaranteeing the same efficiency. The new racing carbon ceramic braking system also delivers shorter braking distances and is generally more efficient due to the weight saving.

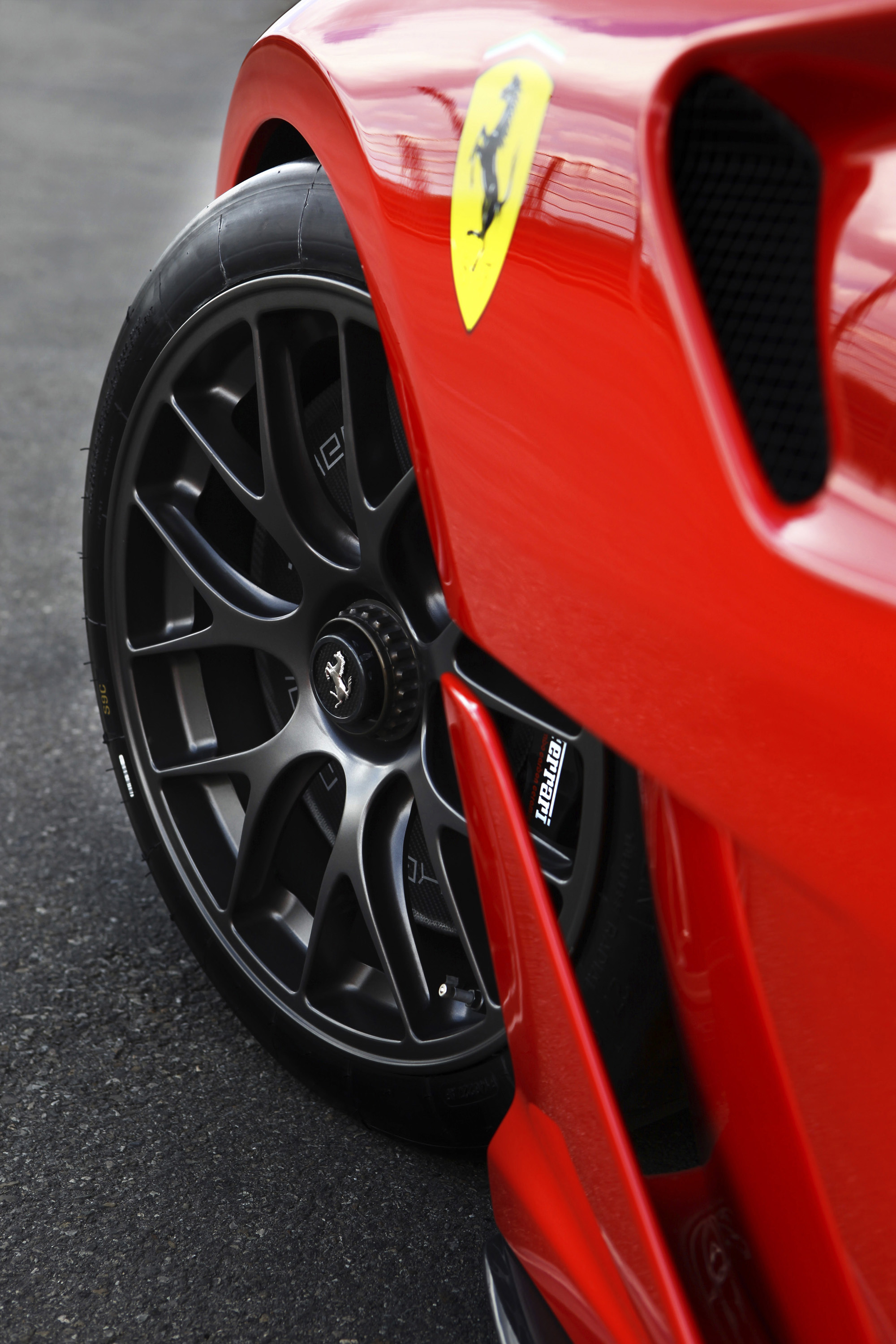

The 599XX comes with slick tyres (29/67 R19 Front and 31/71 R19 Rear) specifically developed to maximise stability in cornering and increase lateral acceleration. They are fitted to 19 x 11J wheel rims at the front and 19 x 12J at the rear.
