Life imitates art with Jaguar Virtual Windscreen

Jaguar Virtual Windcsreen

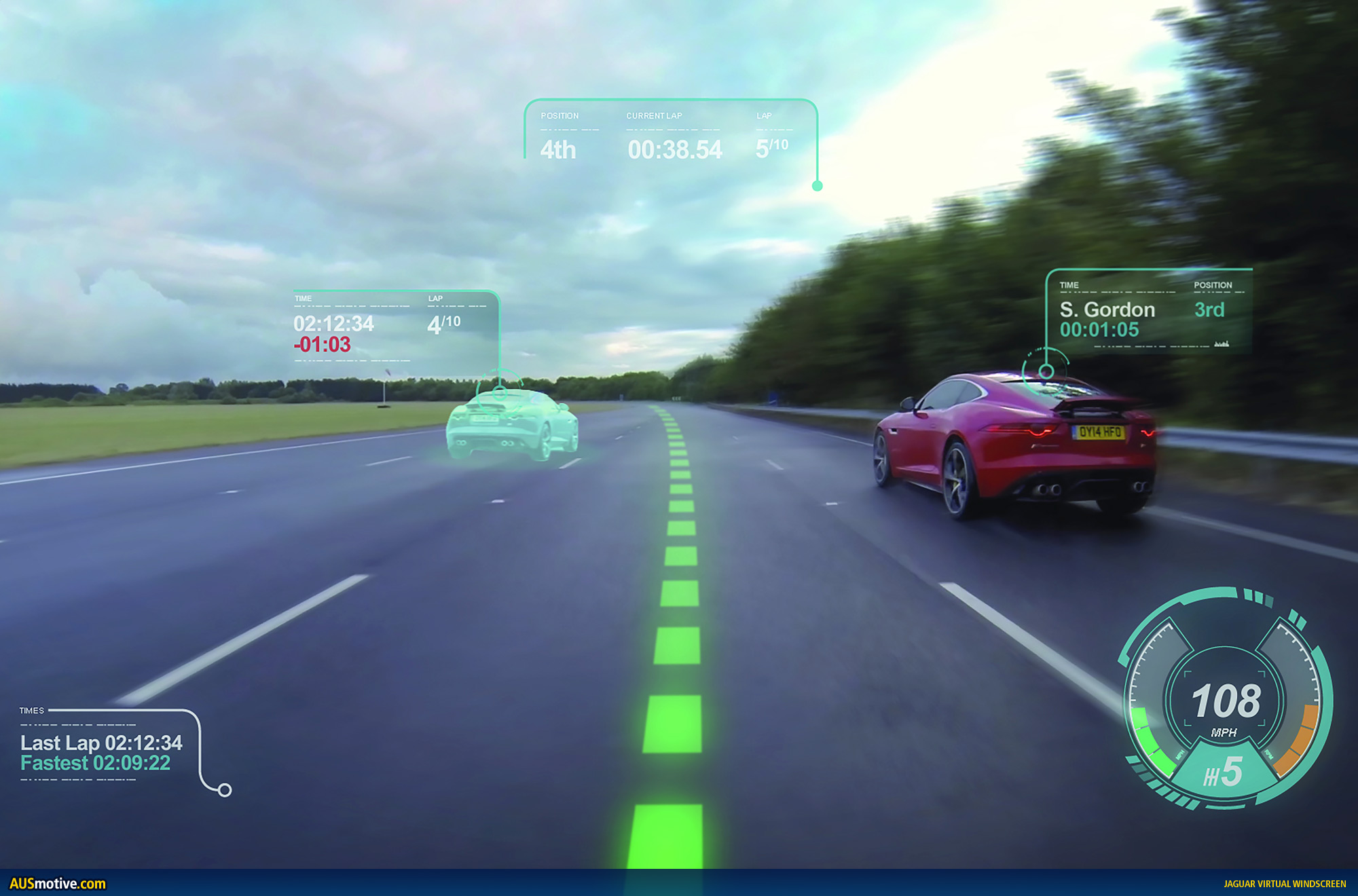

Jaguar Land Rover has revealed its Virtual Windcsreen concept which it says can help reduce driver distraction. The Jaguar Virtual Windscreen can also be used to aid performance driving on a racetrack, too, as the image above shows.

By using on screen graphics—yes, that’s right on the windscreen—the system shows you the optimum racing line, when you should be full throttle, when you should be braking and even when you should be applying partial throttle. In addition you get live telemetry and lap time info from your own car as well as data from your competitors.

Want to try and recreate your perfect lap? Then just load up the ghost car that has your best lap time stored away and follow the leader, as it were.

A video below shows the system in action. What the video doesn’t show is the system’s use of gesture control, in much the same way as smartphones operate. The aim here is to limit the necessity to look and feel for buttons and controls.

“We are working on research projects that will give the driver better information to enhance the driving experience,” said Dr Wolfgang Epple, Director of Research and Technology for Jaguar Land Rover. “By presenting the highest quality imagery possible, a driver need only look at a display once.

“Showing virtual images that allow the driver to accurately judge speed and distance will enable better decision-making and offer real benefits for every-day driving on the road, or the track.”

This system looks very interesting and the benefits are easy to see. Although, far from reducing driver distraction, at first, we think it could contribute to distraction until the driver becomes familiar with the screen display.

The Virtual Windscreen looks fine in the video, in a two-dimensional PlayStation-like situation, but when you’re sitting in the car, in a three-dimensional world, with real cars beside you, we think it might take some getting used to.

One thing is clear, we’d very much like to try this out for ourselves!

Jaguar Land Rover develops virtual technologies to enhance performance driving and reduce distraction

  • Jaguar Land Rover reveals its ‘Jaguar Virtual Windscreen’ concept that will aid road and track driving
  • Hazard, speed, navigation data and the racing line could all be projected onto the entire windscreen.
  • Jaguar Land Rover demonstrates virtual imaging technology that could offer drivers a spectacles-free 3D image instrument cluster, replacing the rear view mirror
  • ‘Jaguar Virtual Windscreen’, 3D cluster and gesture control are part of a suite of new concept technologies that will reduce driver distraction

Whitley, UK: Jaguar Land Rover is creating cutting-edge technologies to develop new ways to give drivers higher quality, life-like graphics and information that will offer an enhanced ‘virtual’ view of the road or race track.

The ‘Jaguar Virtual Windscreen’ concept uses the entire windscreen as a display so the driver’s eyes need never leave the road. High quality hazard, speed and navigation icons could all be projected onto the screen together. For performance drivers, imagery that could aid track driving includes:

Racing line and braking guidance. Virtual racing lines on the windscreen appear to be marked on the track ahead for optimum racing line, with changes in colour to indicate braking guidance.

Ghost car racing. Improve your lap times by racing a ‘ghost car’ visualisation of your car on a previous lap, or compete against a lap uploaded from another driver.

Virtual cones can be laid out on the track ahead for driver training. These could be moved as the driver’s ability improves.

Dr Wolfgang Epple, Director of Research and Technology for Jaguar Land Rover, said: “We are working on research projects that will give the driver better information to enhance the driving experience. By presenting the highest quality imagery possible, a driver need only look at a display once. Showing virtual images that allow the driver to accurately judge speed and distance will enable better decision-making and offer real benefits for every-day driving on the road, or the track.”

Jaguar Land Rover is developing a gesture control system to keep the driver’s eyes on the road and reduce distraction by limiting the need to look at or feel for buttons and switches to press.

Jaguar Land Rover’s gesture control research uses E-Field Sensing, which is based on the latest capacitive discharge touch screens and gives much greater accuracy than ever before. A smartphone today detects the proximity of a user’s finger from 5mm. The Jaguar Land Rover system increases the range of the sensing field to around 15cm which means the system can be used to accurately track a user’s hand and any gestures it makes inside the car.

“Gesture control has already become an accepted form of controlling anything from TV sets to games consoles. The next logical step is to control selected in-car features. We have identified which functions still need to be controlled by physical buttons and which could be controlled by gesture and carefully calibrated motion sensors,” said Dr Epple. “The system is currently being tested on a number of features including sunblinds, rear wipers and satellite navigation maps. It has the potential to be on sale within the next few years.”

Jaguar Land Rover’s research team is also looking at technology that could replace rear view and external mirrors with cameras and virtual displays. Using two-dimensional imaging to replace mirrors is limited by the fact that single plane images on a screen do not allow the driver to accurately judge the distance or speed of other road users.

Jaguar Land Rover has therefore developed an innovative 3D instrument cluster, which uses the latest head- and eye-tracking technology to create a natural-looking, specs-free 3D image on the instrument panel. Cameras positioned in the instrument binnacle or steering column area track the position of the user’s head and eyes. Software then adjusts the image projection in order to create a 3D effect by feeding each eye two slightly differing angles of a particular image. This creates the perception of depth which allows the driver to judge distance.
